PLC 1x32 Optical Splitter 1x8 SC APC Ribbon Fan Out

Name: PLC 1x32 Optical Splitter 1x8 SC APC Ribbon Fan Out
Brand: CFOFC
Price: 1 USD

Brand Name : CFOFC

Model Number : CFOFC-plc-32

Certification : Rohs ISO 9001

Place of Origin : Shenzhen

MOQ : 1000

Price : Negotiable

Payment Terms : L/C, T/T, D/P

Supply Ability : 100000pcs per week

Delivery Time : 5-8 work days

Packaging Details : 1PC/polybag, 55 x 45 x 20 ( Millimeters)

Application : FTTH FTTB FTTX Network

Product name : 1*32 PLC splitter

Connector : SC/APC/UPC

Material : ABS+PC

Connector type : SC

Splitter : splitter

Contact Now

Ribbon Fan-out PLC Splitter 1x32 1x8 Fiber Optic Splitter SC / APC

Description of Fiber PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.All products meet GR-1209-CORE and GR-1221-CORE requirements. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.IHD provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Specification of Fiber PLC Splitter

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A

Features of Fiber PLC Splitter

Excellent Environmental Stability

Excellent Mechanical

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Application of Fiber PLC Splitter

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applications in fiber optic systems

PLC 1x32 Optical Splitter 1x8 SC APC Ribbon Fan Out

The reason why Choose us

1. On time delivery

2. Factory outlet
 3. Customization
 4. Large product inventory with massive production line
 5. Product distribution involves multi-fields, dozens of countries including some developed countries.

 FAQ

 1. Can I have a sample order of this product?
 Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

 2. How to Store the Optical Fiber Cable Properly?
 Store the drum indoor before using, the drum should place sideways not on the end.

 3. What's your payment terms?
 We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

 4. Are you factory direct?
 As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

 5. Is there any discount on the product?
 We have several production promotion activities every month, welcome to inquire.

Product Tags:

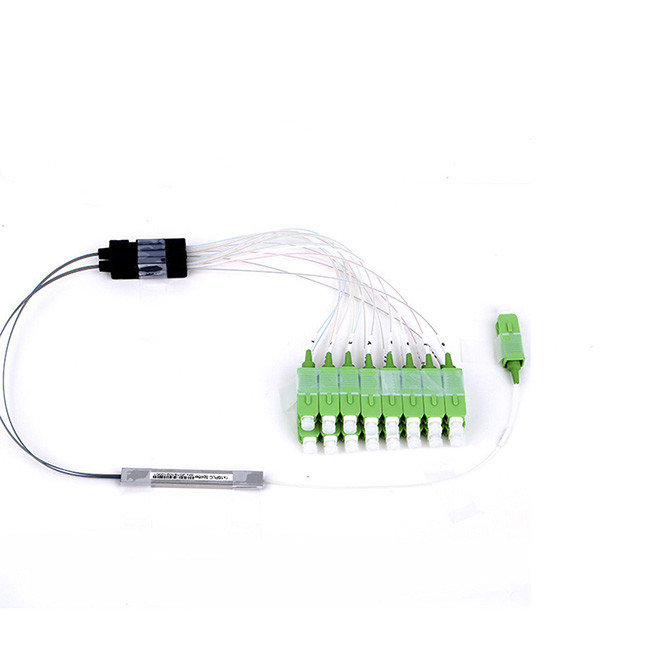

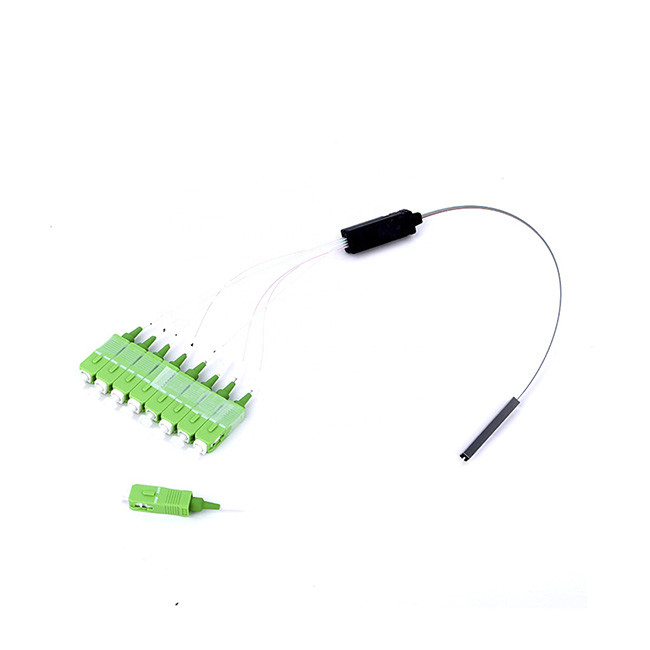

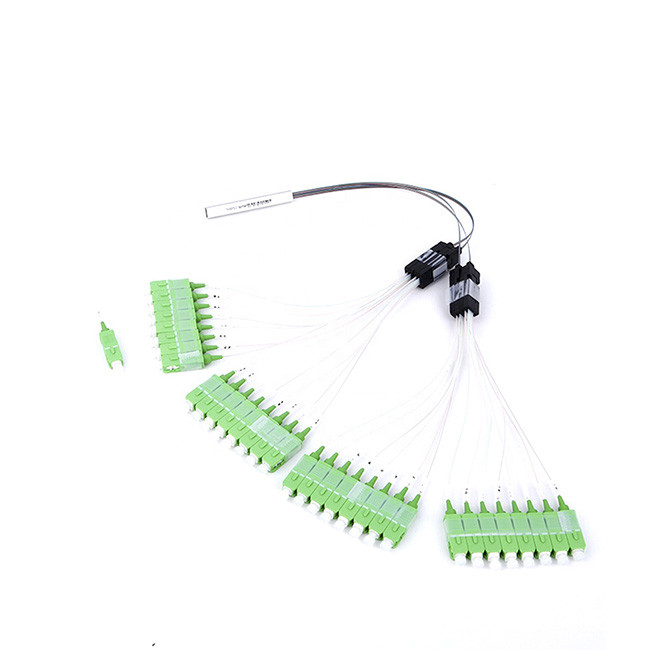

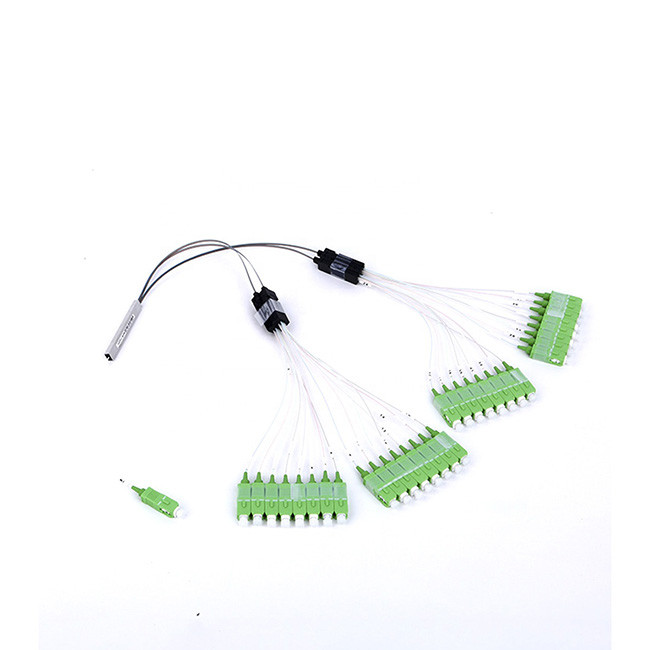

PLC 1x32 Optical Splitter 1x8 SC APC Ribbon Fan Out Images
